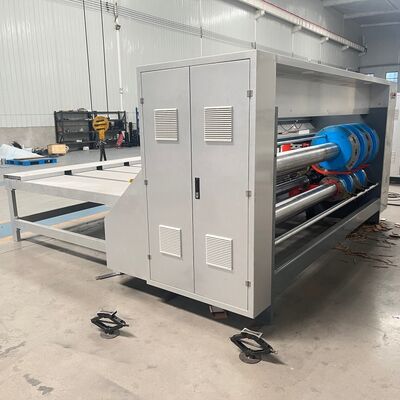

Corrugated Box Slotting And Creasing Rotary Slotting Device Semi Automatic Feeding Ideal For Packaging Production Lines

Product Description:

The machine allows for feeding single paperboard by hand, making it suitable for general flexural paperboard as well. This manual feeding method provides flexibility for various types of paperboard materials.

Regarding the slicing corner, the open slot knife can rotate a full 360 degrees in both clockwise and counterclockwise directions. It is circularly adjustable using a manual handle, which makes it convenient to adjust, reliable to lock, and capable of precisely opening the slot. The adjustment mechanism is compactly designed, durable, and ensures a long service life.

For the electrical phase, the open slot knife also supports a 360-degree rotation in both positive and reverse directions. It is equipped with a motorized micro-adjusting system, allowing for easy operation and highly accurate size adjustments. The locking mechanism is reliable, ensuring precise slotting performance.

The slot knives work together with the crease movement, facilitating convenient adjustments of the machine. This feature helps save significant machine adjustment time, improving overall operational efficiency.

Additionally, all machine rollers are chrome-plated after grinding, which enhances their hardness and extends their service life. This treatment improves the durability and reliability of the rollers during long-term use.

Features:

Known in the corrugated industry as the "Chain-Type Slotter" or the "3-in-1 Machine," this equipment plays a critical role in the post-processing of corrugated cardboard. By combining multiple operations such as feeding, slitting, creasing, slotting, and corner cutting into a single pass, it offers an efficient solution ideal for small to medium-sized box manufacturing facilities.

Often considered the "tailor" of corrugated boxes, this machine transforms flat sheets of cardboard into foldable box blanks through several coordinated processes:

• Chain Feeding: The machine uses chain lugs or pushers along with side guides to accurately convey the cardboard into the processing section. This feeding mechanism accommodates warped or slightly bent boards, ensuring stable movement without jams.
• Rotary Slotting: Featuring interlocking upper and lower rotary knives, it cuts precise slots for box cover joints. These slots are crucial for clean folding, with both slot depth and alignment fully adjustable to different requirements.
• Corner Cutting (Trim Cutting): This function removes excess material from the cardboard’s four corners, shaping the joint areas. The corner cutting is typically synchronized with slotting actions to guarantee seamless cuts.
• Creasing (Scoring): It creates crease lines that allow the box to fold neatly along designated straight lines. Modern machines offer synchronized creasing and slotting adjustments to avoid misalignments during production.
• Slitting (Side Trimming): This step trims the cardboard sides for exact final dimensions and smooth edges, ensuring a professional finish.

Additionally, optional features such as handle hole cutting, ventilation holes, or perforations can be integrated to meet specific packaging designs.

• Multi-functional Integration: This machine combines several operations previously carried out on separate machines, saving valuable floor space and reducing labor costs.
• Quick Setup: Newer models incorporate "four-knife synchronization" and 360-degree electric phase adjustment, removing the need for manual knife alignment during job changes. This enhances both efficiency and product consistency.
• High Adaptability: The chain feed system efficiently processes cardboard of varying thicknesses, including 3-ply, 5-ply, and 7-ply, making it highly versatile for small and medium enterprises.

This machine is predominantly utilized for manufacturing corrugated box blanks and cartons. Its applications span industries such as food and beverage packaging, home appliances, express delivery services, and general merchandise. Located in Cangzhou, Hebei — a prominent corridor for corrugated machinery manufacturing in China — users benefit from locally competitive pricing and robust after-sales support.

• Focus on "Four-Knife Sync": Opt for models allowing synchronized slotting depth adjustment across all four tool sets to reduce downtime during changeovers.
• Lubrication System: Prefer machines equipped with spray-type circulating lubrication for gears to maintain stable, noise-reduced long-term operation.
• Safety Protocols: While the system largely operates semi-automatically with manual loading, the rotary slotting section remains a high-risk area. Strict safety measures must be followed to keep hands clear of moving parts.

Applications:

The GR Corrugated Rotary Slotter Machine, model numbers 2800 and 3000, is a highly efficient and reliable solution designed for industries involved in corrugated box manufacturing. Originating from Hebei Province and certified with CE and ISO standards, this machine ensures top-quality performance and safety. Its advanced PLC control system allows precise operation, making it ideal for slotting and creasing corrugated boxes with high accuracy and speed.

This Rotary Slotting Machine is perfect for various production environments, including packaging factories, carton manufacturing plants, and large-scale printing companies. The machine’s capability to handle corrugated slotting with four groups of slotting knives enables it to produce complex box designs efficiently. Its robust build and safety features, such as emergency stop functions and protective safety guards, ensure secure operation during high-volume production runs.

With a power supply of 380V, 50Hz, 3-phase electricity, the GR Rotary Slotting Machine is optimized for heavy-duty industrial use. The Corrugated Slotting Device is especially suitable for businesses requiring consistent and precise slotting and creasing of corrugated materials, facilitating the production of durable and high-quality packaging boxes. Its user-friendly PLC control system simplifies operation, reducing downtime and increasing productivity.

Packaging details include secure plastic and wood materials, ensuring the machine's safe delivery within 30 days after order confirmation. The supplier offers a minimum order quantity of just one set, with flexible payment terms through T/T, making it accessible for both small and large manufacturers. With a supply ability of 30 sets per month, GR can meet the demands of various production scales efficiently.

Overall, the GR Corrugated Slotting Machine is an indispensable asset for companies focused on manufacturing corrugated boxes. Its combination of advanced slotting technology, safety mechanisms, and reliable control systems ensures superior performance. Whether for producing simple cartons or complex packaging solutions, this rotary slotting machine stands out as a versatile and dependable choice in the corrugated box industry.

Customization:

Our GR Rotary Corrugated Slotting Device, model 2800/3000, is designed for precise corrugated box slotting and creasing, ensuring high-quality output with slotting accuracy of ±0.1 mm. Manufactured in Hebei Province, this Corrugated Slotting Device comes with CE and ISO certifications, guaranteeing reliability and safety.

We offer product customization services to meet your specific requirements, including adjustments to the minimum feeding board size starting from 350x600mm and configurations of slotting knives with 4 groups of knives for optimal performance. The machine operates on a power supply of 380V, 50Hz, 3-phase, suitable for a variety of industrial environments.

The minimum order quantity is 1 set, with pricing to be negotiated based on customization needs. Packaging options include durable plastic and wood to ensure safe delivery. Delivery time is typically 30 days, supported by a supply ability of 30 sets per month. Payment terms are flexible, with T/T accepted.

Choose the GR Rotary Corrugated Slotting Device for efficient and accurate corrugated slotting solutions tailored to your business demands, backed by professional customization services and dedicated support.

Support and Services:

Our Corrugated Rotary Slotter Machine is designed to provide high precision and efficiency in the production of corrugated cardboard packaging. For technical support, our team of experts is available to assist you with installation, troubleshooting, maintenance, and optimization of your machine to ensure maximum performance and minimal downtime.

We offer comprehensive services including on-site training for your operators, preventive maintenance programs, and prompt repair services using genuine spare parts. Our technical support also includes software updates and upgrades to keep your machine running with the latest features and improvements.

Whether you require assistance with machine setup, operational guidance, or technical consultations to customize the slotting process according to your specific production needs, our dedicated support staff is committed to providing timely and effective solutions.

To enhance the lifespan and reliability of your Corrugated Rotary Slotter Machine, we recommend following the maintenance schedules and operational guidelines provided in the user manual. Regular maintenance checks and proper handling will help prevent unexpected breakdowns and ensure consistent product quality.

Trust our professional technical support and services to maximize your investment and streamline your corrugated packaging production.

Packing and Shipping:

Our Corrugated Rotary Slotter Machine is carefully packaged to ensure maximum protection during transit. The machine is securely fastened within a sturdy wooden crate, reinforced with metal straps to prevent any movement or damage. Internal padding and shock-absorbing materials are used to safeguard sensitive components from vibrations and impacts.

For shipping, we utilize reliable freight services that specialize in handling heavy industrial machinery. The packaging dimensions and weight are clearly labeled to facilitate safe handling and transportation. We offer both sea and air freight options, tailored to meet the delivery requirements and timelines of our customers.

Upon delivery, our logistics team coordinates with the customer to ensure smooth unloading and installation support if required. All necessary documentation, including packing lists, manuals, and certificates of compliance, are provided with the shipment to guarantee a hassle-free receiving process.

FAQ:

Q1: What is the brand and model number of the Corrugated Rotary Slotter Machine?

A1: The Corrugated Rotary Slotter Machine is branded as GR and the model numbers available are 2800 and 3000.

Q2: Where is the Corrugated Rotary Slotter Machine manufactured?

A2: The machine is manufactured in Hebei Province, China.

Q3: What certifications does the Corrugated Rotary Slotter Machine have?

A3: This machine is certified with CE and ISO certifications, ensuring quality and safety standards.

Q4: What is the minimum order quantity and price for the Corrugated Rotary Slotter Machine?

A4: The minimum order quantity is 1 set. The price is to be negotiated based on order details and requirements.

Q5: What are the packaging, delivery time, and payment terms for this machine?

A5: The machine is packaged using plastic and wood materials. The delivery time is approximately 30 days, and the payment term is T/T (Telegraphic Transfer).
