Fully Automatic Corrugated Carton Die Cutting Machine with Pre Paper Pile Design and Pneumatic Bench for Efficient Workflow

1 ensembles
MOQ
To be negotiated
Prix
Fully Automatic Corrugated Carton Die Cutting Machine with Pre Paper Pile Design and Pneumatic Bench for Efficient Workflow
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Garantie: 1 an
Taper: Automatique
Vitesse: 0-80 pièces/minute
Condition: Nouveau
Service après-vente fourni: Assistance en ligne, assistance technique vidéo
Usage: Papier à découper
Couleur: Blanc, gris
Type d'emballage: Plastique, bois
Informations de base
Lieu d'origine: Hebei, Chine
Nom de marque: GR
Certification: CE,ISO
Numéro de modèle: MYQ1300
Conditions de paiement et expédition
Détails d'emballage: Emballage de caisse en bois (facultatif) ou emballage de film plastique bien emballé
Délai de livraison: 30-40 jours
Conditions de paiement: LC, T/T, Western Union
Capacité d'approvisionnement: 10 séries/mois
Description de produit
Corrugated Carton Die Cutting Machine Featuring Pre Paper Pile Design and Pneumatic Bench to Save Time and Improve Workflow

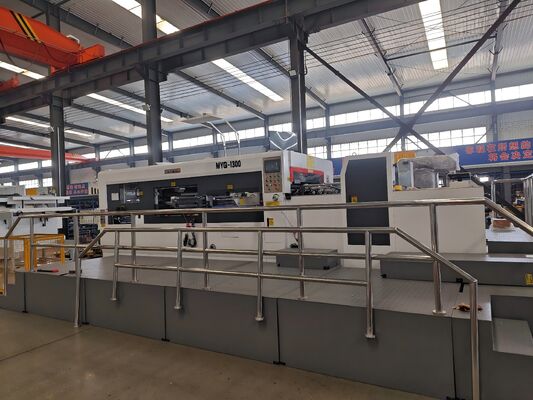

MYQ1300 Fully Automatic Die Cutting And Creasing Machine

Advanced die cutting and creasing machine designed for efficient corrugated board processing with automated features for enhanced productivity.

Fully Automatic Corrugated Carton Die Cutting Machine with Pre Paper Pile Design and Pneumatic Bench for Efficient Workflow 0
A. Feeding and Collecting Part
  • Extra lead edge feeder capable of handling thick corrugated board
  • Central monitor installation for easy rear visibility
  • Pre-paper pile design and special pneumatic bench for time savings
  • Non-stop sampling system for board accuracy verification during operation
B. Positioning Part
  • Additional brush wheels and pressing wheels for thin paper and corrugated board
  • Advanced push and pull lay registration for precise die cutting
  • Rikko light front lay detection system prevents slanting paper entry
C. Main Body
  • Automatic centralized lubricating system with HMI-controlled main chain lubrication
  • Patented shock absorption system prolongs machine life and increases pressure
  • Taiwan-made intermittent gearbox ensures accurate registration and reduces gripper attack
D. Die-cutting Part and Delivery System
  • Diecutting chase fixed accurately by pneumatic lock system
  • Air floating device for easy diecutting plate insertion and removal
  • Electric clutch system maintains chain stability during high-speed stops
  • PLC-controlled periodic lubrication for main and assist chains
  • Protection window keeps main body clean
  • Lightweight aluminum alloy gripper bars with Renold UK or IWIS GERMANY chains
E. Paper Collecting Part
  • Back and side aligning paper systems for orderly automatic paper feeding
  • Simple structure with quick operation capabilities
  • Electric back aligning paper adjustment - three times faster than manual operation
  • Front machine monitoring for back aligning paper
  • Double detection switch for paper order monitoring
  • Sample collection during machine operation
  • Automatic alarm when paper collecting reaches order capacity
  • Quantitative paper setting from 10 to 9999 sheets with automatic cutoff
Fully Automatic Corrugated Carton Die Cutting Machine with Pre Paper Pile Design and Pneumatic Bench for Efficient Workflow 1
Technical Specifications
Item Parameters
Model MYQ1300
Die cutting type Pressed flat die cutting (Lower side movable, upper side unmovable)
Max paper transmitting size 1320×1980 mm
Min paper transmitting size 400×380 mm
Max die cutting size 1300×960 mm
Min gripper size 6-8 mm
Max die cutting pressure 350 N/cm²
Paper processed Corrugated board: 1-10mm
Max die cutting speed 5500 sheets/h
Max feeding pile height 1400 mm (above the level)
Min feeding pile height 1250 mm (above the level)
Main motor power 11 kw
Total power ~27 kw
Total weight ~20 T
Overall size 8540×4300×2345 mm
Packing and Shipping
  • Moisture-proof and shock-proof packaging suitable for long-distance road transportation
  • Designed for various weather conditions
  • Includes full set of maintenance and operation manuals
Fully Automatic Corrugated Carton Die Cutting Machine with Pre Paper Pile Design and Pneumatic Bench for Efficient Workflow 2
